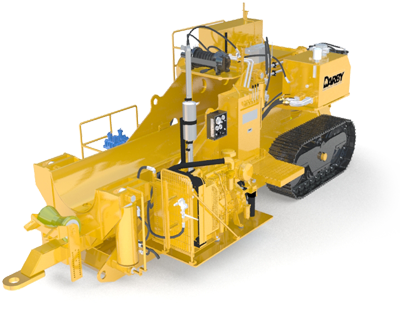

Darby HPB 16-30 Pipe Bending Machine

Raw JSON Data:

{
  "id": "hpb1630",
  "model": "HPB 16-30",
  "full_name": "Darby HPB 16-30 Pipe Bending Machine",
  "description": "Darby 1630 pipe equipment",
  "category_id": "pipe_bending_machines",
  "specs_summary": "{\"Length\": \"22'6\\\" (4114.8 mm)\", \"Width\": \"8'6\\\" (2032 mm)\", \"Height\": \"8'6\\\" (2590.8 mm)\", \"Weight\": \"35,000 lbs (15,876 kg) (w/o bending set)\", \"Engine\": \"CAT C4.4 Turbo 109 hp @ 2200 rpm\", \"Winch\": \"Ramsey 15,000 lb Winch\", \"Air Compressor\": \"Hydraulic Driven Quincy 370 Compressor w/ 120 Gal Reservoir\", \"Cylinders\": \"(2) 9\\\" (229 mm) Outboard Cylinders w/ 19\\\" Stroke\", \"Hydraulic Pump\": \"Denison Main Pump, Parker Piston Pump for Compressor Drive\", \"Oil Cooler\": \"American Industrial\"}",
  "featured": 0,
  "sort_order": 0,
  "additional_note_1": "CAT C4.4 Turbo 109hp @2200rpm",
  "additional_note_2": "100gal hydraulic tank, 80gal fill capacity",
  "image_filename": "images/products/1630benderbig.png",
  "image_is_main": 1,
  "images": [
    {
      "filename": "images/products/1630benderbig.png",
      "is_main": 1,
      "description": null
    }
  ],
  "specifications": [
    {
      "spec_name": "Length",
      "spec_value": "22'6\" (4114.8 mm)"
    },
    {
      "spec_name": "Width",
      "spec_value": "8'6\" (2032 mm)"
    },
    {
      "spec_name": "Height",
      "spec_value": "8'6\" (2590.8 mm)"
    },
    {
      "spec_name": "Weight",
      "spec_value": "35,000 lbs (15,876 kg) (w/o bending set)"
    },
    {
      "spec_name": "Engine",
      "spec_value": "CAT C4.4 Turbo 109 hp @ 2200 rpm"
    },
    {
      "spec_name": "Winch",
      "spec_value": "Ramsey 15,000 lb Winch"
    },
    {
      "spec_name": "Air Compressor",
      "spec_value": "Hydraulic Driven Quincy 370 Compressor w/ 120 Gal Reservoir"
    },
    {
      "spec_name": "Cylinders",
      "spec_value": "(2) 9\" (229 mm) Outboard Cylinders w/ 19\" Stroke"
    },
    {
      "spec_name": "Hydraulic Pump",
      "spec_value": "Denison Main Pump, Parker Piston Pump for Compressor Drive"
    },
    {
      "spec_name": "Oil Cooler",
      "spec_value": "American Industrial"
    }
  ],
  "features": [
    {
      "id": 257,
      "product_id": "hpb1630",
      "feature": "35 gal (133 Litre)  fuel tank",
      "sort_order": 0
    },
    {
      "id": 258,
      "product_id": "hpb1630",
      "feature": "5 section hydraulic control valve for optionalhydraulic mandreloperation as well as bending operations",
      "sort_order": 1
    },
    {
      "id": 259,
      "product_id": "hpb1630",
      "feature": "100 gal (379 Litre) hydraulic tank, 80 gal (303 Litre) fill capacity",
      "sort_order": 2
    },
    {
      "id": 260,
      "product_id": "hpb1630",
      "feature": "Oil cooler in compressor drive circuit",
      "sort_order": 3
    },
    {
      "id": 261,
      "product_id": "hpb1630",
      "feature": "Machine side plates reinforced with stiffeners in key locations; Multi-pass welding for optimal frame life and strength; Side plates made from 3/4\" T1 steel; Die nest plates made from 1\" T-1 steel; all welds are pre heated and heat controlled and all welds are made in position",
      "sort_order": 4
    },
    {
      "id": 262,
      "product_id": "hpb1630",
      "feature": "Dual hydraulic filtration, pressure and return",
      "sort_order": 5
    },
    {
      "id": 263,
      "product_id": "hpb1630",
      "feature": "Murphy Control panel w/ electric start, throttle control, oil pressure, tachometer and hour meter",
      "sort_order": 6
    },
    {
      "id": 264,
      "product_id": "hpb1630",
      "feature": "Murphy Control panel w/ electric start, throttle control, oil pressure, tachometer and hour meter",
      "sort_order": 7
    },
    {
      "id": 265,
      "product_id": "hpb1630",
      "feature": "Parker Seal-Lok™ hydraulic systems prevents leaks and has a working pressure rating of 3000 psi",
      "sort_order": 8
    },
    {
      "id": 266,
      "product_id": "hpb1630",
      "feature": "Repairable hydraulic cylinders with Parker Seals come apart without cutting to enable easy seal repair",
      "sort_order": 9
    },
    {
      "id": 267,
      "product_id": "hpb1630",
      "feature": "15 ton CAT style triple grouser tracks",
      "sort_order": 10
    }
  ],
  "documents": [
    {
      "filename": "HPB1630.pdf",
      "doc_type": "spec_sheet",
      "product_id": "hpb1630"
    }
  ]
}
