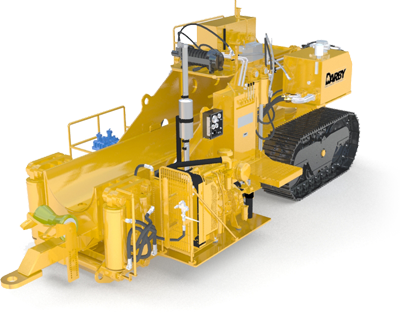

Darby HPB 22-36 Pipe Bending Machine

Raw JSON Data:

{
  "id": "hpb2236",
  "model": "HPB 22-36",
  "full_name": "Darby HPB 22-36 Pipe Bending Machine",
  "description": "Darby 2236 pipe equipment",
  "category_id": "pipe_bending_machines",
  "specs_summary": "{\"Length\": \"24'6\\\" (7467.6 mm)\", \"Width\": \"9'1\\\" (2768.6 mm)\", \"Height\": \"9'3\\\" (2819.4 mm)\", \"Weight\": \"51,000 lbs (23,133 kg) (w/o bending set)\", \"Engine\": \"CAT C6.6 Turbo Diesel 173 hp @ 2200 rpm\", \"Winch\": \"Ramsey 20,000 lb Powermaster\\u00ae Winch\", \"Air Compressor\": \"Quincy 390 Compressor w/ Hydraulic Drive\", \"Cylinders\": \"(4) 9\\\" (229 mm)Outboard Cylinders w/ 19\\\" Stroke\", \"Hydraulic Pump\": \"Denison Main Pump, Parker Piston Pump for Compressor Drive\", \"Oil Cooler\": \"American Industrial\"}",
  "featured": 0,
  "sort_order": 0,
  "additional_note_1": " CAT C6.6 Turbo Diesel 173hp @2200rpm",
  "additional_note_2": "120gal hydraulic tank, 100gal fill capacity",
  "image_filename": "images/products/2236benderbig.png",
  "image_is_main": 1,
  "images": [
    {
      "filename": "images/products/2236benderbig.png",
      "is_main": 1,
      "description": null
    }
  ],
  "specifications": [
    {
      "spec_name": "Length",
      "spec_value": "24'6\" (7467.6 mm)"
    },
    {
      "spec_name": "Width",
      "spec_value": "9'1\" (2768.6 mm)"
    },
    {
      "spec_name": "Height",
      "spec_value": "9'3\" (2819.4 mm)"
    },
    {
      "spec_name": "Weight",
      "spec_value": "51,000 lbs (23,133 kg) (w/o bending set)"
    },
    {
      "spec_name": "Engine",
      "spec_value": "CAT C6.6 Turbo Diesel 173 hp @ 2200 rpm"
    },
    {
      "spec_name": "Winch",
      "spec_value": "Ramsey 20,000 lb Powermaster® Winch"
    },
    {
      "spec_name": "Air Compressor",
      "spec_value": "Quincy 390 Compressor w/ Hydraulic Drive"
    },
    {
      "spec_name": "Cylinders",
      "spec_value": "(4) 9\" (229 mm)Outboard Cylinders w/ 19\" Stroke"
    },
    {
      "spec_name": "Hydraulic Pump",
      "spec_value": "Denison Main Pump, Parker Piston Pump for Compressor Drive"
    },
    {
      "spec_name": "Oil Cooler",
      "spec_value": "American Industrial"
    }
  ],
  "features": [
    {
      "id": 268,
      "product_id": "hpb2236",
      "feature": "35 gal (133 Litre)  fuel tank",
      "sort_order": 0
    },
    {
      "id": 269,
      "product_id": "hpb2236",
      "feature": "5 section hydraulic control valve for optional hydraulic mandreloperation as well as bending operations",
      "sort_order": 1
    },
    {
      "id": 270,
      "product_id": "hpb2236",
      "feature": "120 gal (454 Litre) hydraulic tank, 100 gal (379 Litre) fill capacity",
      "sort_order": 2
    },
    {
      "id": 271,
      "product_id": "hpb2236",
      "feature": "Oil cooler in compressor drive circuit",
      "sort_order": 3
    },
    {
      "id": 272,
      "product_id": "hpb2236",
      "feature": "Machine side plates reinforced with stiffeners in key locations; Multi-pass welding for optimal frame life and strength; Side plates made from 1\" T1 steel; Die nest plates made from 1-1/2\" T-1 steel; all welds are pre heated and heat controlled and all welds are made in position",
      "sort_order": 4
    },
    {
      "id": 273,
      "product_id": "hpb2236",
      "feature": "Dual hydraulic filtration, pressure and return",
      "sort_order": 5
    },
    {
      "id": 274,
      "product_id": "hpb2236",
      "feature": "Murphy Control panel w/ electric start, throttle control, oil pressure, tachometer and hour meter",
      "sort_order": 6
    },
    {
      "id": 275,
      "product_id": "hpb2236",
      "feature": "Parker Seal-Lok™ hydraulic systems prevents leaks and has a working pressure rating of 3000 psi",
      "sort_order": 7
    },
    {
      "id": 276,
      "product_id": "hpb2236",
      "feature": "Repairable hydraulic cylinders with Parker Seals come apart without cutting to enable easy seal repair",
      "sort_order": 8
    },
    {
      "id": 277,
      "product_id": "hpb2236",
      "feature": "15 ton CAT style triple grouser tracks",
      "sort_order": 9
    }
  ],
  "documents": [
    {
      "filename": "HPB2236.pdf",
      "doc_type": "spec_sheet",
      "product_id": "hpb2236"
    }
  ]
}
