Darby HPB 32-42 Pipe Bending Machine

Raw JSON Data:

{
  "id": "hpb3242",
  "model": "HPB 32-42",
  "full_name": "Darby HPB 32-42 Pipe Bending Machine",
  "description": "Darby 3242 pipe equipment",
  "category_id": "pipe_bending_machines",
  "specs_summary": "{\"Length\": \"26'8\\\" (8,128 mm)\", \"Width\": \"10'2\\\" (3,098.8 mm)\", \"Height\": \"11'5\\\" (3,479.8 mm)\", \"Weight\": \"82,500 lbs (37,421 kg) (w/o bending set)\", \"Engine\": \"CAT C6.6 Turbo Diesel 202 hp @ 2,200 rpm\", \"Winch\": \"Ramsey 20,000 lb (9,071 kg) Powermaster\\u00ae hydraulic planetary winch\", \"Air Compressor\": \"Quincy 390 LVD air compressor w/hydraulic drive and 120 gal (454.3 L) resevoir\", \"Cylinders\": \"(4) 11\\\" (279 mm) outboard cylinders w/18.5\\\" (469.9 mm) stroke\", \"Hydraulic Pump\": \"Three Parker Piston Pumps\", \"Oil Cooler\": \"American Industrial\"}",
  "featured": 0,
  "sort_order": 0,
  "additional_note_1": "CAT C6.6 Turbo Diesel 202hp @2200rpm",
  "additional_note_2": "200gal hydraulic tank, 180gal fill capacity",

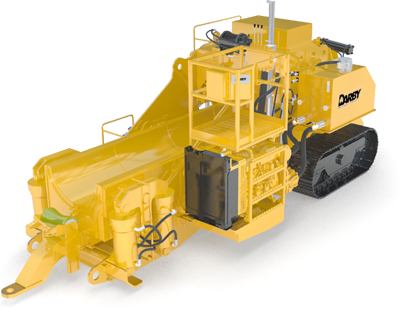

  "image_filename": "images/products/3242benderbig.png",
  "image_is_main": 1,
  "images": [
    {
      "filename": "images/products/3242benderbig.png",
      "is_main": 1,
      "description": null
    }
  ],
  "specifications": [
    {
      "spec_name": "Length",
      "spec_value": "26'8\" (8,128 mm)"
    },
    {
      "spec_name": "Width",
      "spec_value": "10'2\" (3,098.8 mm)"
    },
    {
      "spec_name": "Height",
      "spec_value": "11'5\" (3,479.8 mm)"
    },
    {
      "spec_name": "Weight",
      "spec_value": "82,500 lbs (37,421 kg) (w/o bending set)"
    },
    {
      "spec_name": "Engine",
      "spec_value": "CAT C6.6 Turbo Diesel 202 hp @ 2,200 rpm"
    },
    {
      "spec_name": "Winch",
      "spec_value": "Ramsey 20,000 lb (9,071 kg) Powermaster® hydraulic planetary winch"
    },
    {
      "spec_name": "Air Compressor",
      "spec_value": "Quincy 390 LVD air compressor w/hydraulic drive and 120 gal (454.3 L) resevoir"
    },
    {
      "spec_name": "Cylinders",
      "spec_value": "(4) 11\" (279 mm) outboard cylinders w/18.5\" (469.9 mm) stroke"
    },
    {
      "spec_name": "Hydraulic Pump",
      "spec_value": "Three Parker Piston Pumps"
    },
    {
      "spec_name": "Oil Cooler",
      "spec_value": "American Industrial"
    }
  ],
  "features": [
    {
      "id": 278,
      "product_id": "hpb3242",
      "feature": "The HPB32-42 has a 75 gal (284 Litre) fuel tank and a 200 gal (757 L) hydraulic",
      "sort_order": 0
    },
    {
      "id": 279,
      "product_id": "hpb3242",
      "feature": "tank with 160 gal (606 L) fill capacity. The Large hydraulic tank helps keep the oil",
      "sort_order": 1
    },
    {
      "id": 280,
      "product_id": "hpb3242",
      "feature": "cooler,extending the life of the hydraulic system.",
      "sort_order": 2
    },
    {
      "id": 281,
      "product_id": "hpb3242",
      "feature": "Hydro Control five-section hydraulic control valve provides bending and winch",
      "sort_order": 3
    },
    {
      "id": 282,
      "product_id": "hpb3242",
      "feature": "operation. Hydraulic mandrel operation is a standard feature on all Darby",
      "sort_order": 4
    },
    {
      "id": 283,
      "product_id": "hpb3242",
      "feature": "bending machines.",
      "sort_order": 5
    },
    {
      "id": 284,
      "product_id": "hpb3242",
      "feature": "Machine side plates are reinforced with stiffeners for optimal frame life. Side",
      "sort_order": 6
    },
    {
      "id": 285,
      "product_id": "hpb3242",
      "feature": "plates are 11⁄4\" (31.8 mm) T1 steel and die nest plates",
      "sort_order": 7
    },
    {
      "id": 286,
      "product_id": "hpb3242",
      "feature": "are 11⁄2\" (38.1 mm) T1 steel. All welds are preheated, heat controlled and made \"in position\".",
      "sort_order": 8
    },
    {
      "id": 287,
      "product_id": "hpb3242",
      "feature": "Frame cross tubes supporting the hydraulic cylinders have 3⁄8\" (9.5 mm) wall thickness",
      "sort_order": 9
    },
    {
      "id": 288,
      "product_id": "hpb3242",
      "feature": "Parker Seal Lok™ hydraulic system prevents leaks and has a working pressure rating of 3,000 psi (206.8 bar).",
      "sort_order": 10
    },
    {
      "id": 289,
      "product_id": "hpb3242",
      "feature": "Murphy control panel includes electric start, throttle control, oil pressure, tachometer and hour meter.",
      "sort_order": 11
    },
    {
      "id": 290,
      "product_id": "hpb3242",
      "feature": "Hydraulic cylinders can be disassembled without cutting for ease of repair.",
      "sort_order": 12
    },
    {
      "id": 291,
      "product_id": "hpb3242",
      "feature": "Pinup is fully reinforced to prevent spreading.",
      "sort_order": 13
    },
    {
      "id": 292,
      "product_id": "hpb3242",
      "feature": "390 Quincy Air compressor is hydraulically driven by its own circuit.",
      "sort_order": 14
    },
    {
      "id": 293,
      "product_id": "hpb3242",
      "feature": "10-micron hydraulic pressure and return line filtration keeps oil clean to extend the life of the system.",
      "sort_order": 15
    },
    {
      "id": 294,
      "product_id": "hpb3242",
      "feature": "Oil cooler in compressor drive circuit keeps the circuit cooled. It continously circulates, even when the compressor is not running. This extends the life of the hydraulic system.",
      "sort_order": 16
    },
    {
      "id": 295,
      "product_id": "hpb3242",
      "feature": "Heavy duty 3-roller tracks for improved performance and lower ground track.",
      "sort_order": 17
    }
  ],
  "documents": [
    {
      "filename": "hpb3242.pdf",
      "doc_type": "spec_sheet",
      "product_id": "hpb3242"
    }
  ]
}
