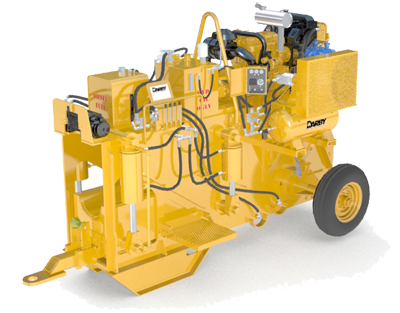

Darby HPB 6-20 Pipe Bending Machine

Raw JSON Data:

{
  "id": "hpb620",
  "model": "HPB 6-20",
  "full_name": "Darby HPB 6-20 Pipe Bending Machine",
  "description": "Darby 620 pipe equipment",
  "category_id": "pipe_bending_machines",
  "specs_summary": "{\"Length\": \"13'6\\\" (4114.8 mm)\", \"Width\": \"6'8\\\" (2032 mm)\", \"Height\": \"8'6\\\" (2590.8 mm)\", \"Weight\": \"11,120 lbs (5043.9 kg) (w/o bending set)\", \"Engine\": \"CAT C4.4 80 hp @ 2400 rpm\", \"Winch\": \"WARN 12,000 lb Hydraulic Planetary Winch\", \"Air Compressor\": \"Quincy 325 LVD Air Compressor w/ Hydraulic Drive\", \"Cylinders\": \"(2) 7\\\" Outboard Cylinders w/ 11\\\" Stroke\", \"Hydraulic Pump\": \"Denison Dual Pump\", \"Oil Cooler\": \"American Industrial\"}",
  "featured": 0,
  "sort_order": 0,
  "additional_note_1": "CAT C4.4 80hp @2400rpm",
  "additional_note_2": "35gal hydraulic tank, 30gal fill capacity",
  "image_filename": "images/products/620benderbig.png",
  "image_is_main": 1,
  "images": [
    {
      "filename": "images/products/620benderbig.png",
      "is_main": 1,
      "description": null
    }
  ],
  "specifications": [
    {
      "spec_name": "Length",
      "spec_value": "13'6\" (4114.8 mm)"
    },
    {
      "spec_name": "Width",
      "spec_value": "6'8\" (2032 mm)"
    },
    {
      "spec_name": "Height",
      "spec_value": "8'6\" (2590.8 mm)"
    },
    {
      "spec_name": "Weight",
      "spec_value": "11,120 lbs (5043.9 kg) (w/o bending set)"
    },
    {
      "spec_name": "Engine",
      "spec_value": "CAT C4.4 80 hp @ 2400 rpm"
    },
    {
      "spec_name": "Winch",
      "spec_value": "WARN 12,000 lb Hydraulic Planetary Winch"
    },
    {
      "spec_name": "Air Compressor",
      "spec_value": "Quincy 325 LVD Air Compressor w/ Hydraulic Drive"
    },
    {
      "spec_name": "Cylinders",
      "spec_value": "(2) 7\" Outboard Cylinders w/ 11\" Stroke"
    },
    {
      "spec_name": "Hydraulic Pump",
      "spec_value": "Denison Dual Pump"
    },
    {
      "spec_name": "Oil Cooler",
      "spec_value": "American Industrial"
    }
  ],
  "features": [
    {
      "id": 246,
      "product_id": "hpb620",
      "feature": "17 gal fuel tank",
      "sort_order": 0
    },
    {
      "id": 247,
      "product_id": "hpb620",
      "feature": "Parker 4 section hydraulic control valve for bending operationsand optional hydraulic mandrel operation / 40 gpm",
      "sort_order": 1
    },
    {
      "id": 248,
      "product_id": "hpb620",
      "feature": "35 gal hydraulic tank, 30 gal fill capacity",
      "sort_order": 2
    },
    {
      "id": 249,
      "product_id": "hpb620",
      "feature": "Oil compressor in compressor drive circuit",
      "sort_order": 3
    },
    {
      "id": 250,
      "product_id": "hpb620",
      "feature": "Frame cross tubes supporting hydraulic cylinders have 3/8\" wall thickness",
      "sort_order": 4
    },
    {
      "id": 251,
      "product_id": "hpb620",
      "feature": "Machine side plates reinforced with stiffeners in key locations; Mulit-pass welding for optimal frame life and strength; Side plates made from 5/8\" T1 steel; Die nest plates made from 1\" T-1 steel; all welds are pre heated and heat controlled and all welds are made 'in position'",
      "sort_order": 5
    },
    {
      "id": 252,
      "product_id": "hpb620",
      "feature": "10 Micron hydraulic return line filtration",
      "sort_order": 6
    },
    {
      "id": 253,
      "product_id": "hpb620",
      "feature": "Murphy Control panel w/ electric start, throttle control, oil pressure, tachometer and hour meter",
      "sort_order": 7
    },
    {
      "id": 254,
      "product_id": "hpb620",
      "feature": "Parker Seal Lok hydraulic systems prevents leaks and has a working pressure rating of 3000 psi",
      "sort_order": 8
    },
    {
      "id": 255,
      "product_id": "hpb620",
      "feature": "Pinup fully reinforced to prevent spreading",
      "sort_order": 9
    },
    {
      "id": 256,
      "product_id": "hpb620",
      "feature": "Repairable hydraulic cylinders with Parker Seals which come apart without cutting to enable easy seal repair",
      "sort_order": 10
    }
  ],
  "documents": [
    {
      "filename": "hpb620.pdf",
      "doc_type": "spec_sheet",
      "product_id": "hpb620"
    }
  ]
}
