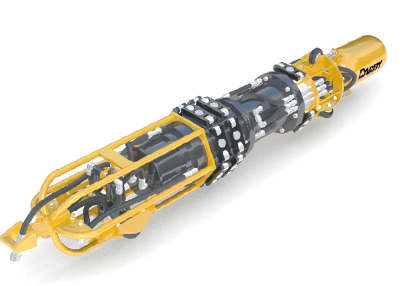

Darby 10 Pipe Equipment

Raw JSON Data:

{
  "id": "ipc10",
  "model": "IPC 10",
  "full_name": "Darby 10 Pipe Equipment",
  "description": "Darby 10 pipe equipment",
  "category_id": "line_up_clamps",
  "specs_summary": "{\"Pipe Size Range\": \"10\\\" (254 mm)\", \"Wall Thickness Range\": \".125\\\" - .5\\\" (3.18 - 12.7 mm)\", \"Standard Length\": \"68\\\" (1727.2 mm)\", \"Width\": \"10\\\" (254 mm)\", \"Height\": \"10\\\" (254 mm)\", \"Weight\": \"235 lbs (107 kg)\", \"Working Air Pressure\": \"180 - 220 psi\", \"Air Motor\": \"Non Powered\", \"Air Tank\": \"2 gal\", \"Clamping Shoes\": \"15 total clamp shoes , 12 shoes at the joint (6 on each section) 3 shoes on rear section\", \"Cylinder\": \"6\\\" (152 mm)\", \"Climbing Capacity\": \"N/A\"}",
  "featured": 0,
  "sort_order": 0,
  "additional_note_1": null,
  "additional_note_2": null,
  "image_filename": "images/products/ipc10big.png",
  "image_is_main": 1,
  "images": [
    {
      "filename": "images/products/ipc10big.png",
      "is_main": 1,
      "description": null
    }
  ],
  "specifications": [
    {
      "spec_name": "Pipe Size Range",
      "spec_value": "10\" (254 mm)"
    },
    {
      "spec_name": "Wall Thickness Range",
      "spec_value": ".125\" - .5\" (3.18 - 12.7 mm)"
    },
    {
      "spec_name": "Standard Length",
      "spec_value": "68\" (1727.2 mm)"
    },
    {
      "spec_name": "Width",
      "spec_value": "10\" (254 mm)"
    },
    {
      "spec_name": "Height",
      "spec_value": "10\" (254 mm)"
    },
    {
      "spec_name": "Weight",
      "spec_value": "235 lbs (107 kg)"
    },
    {
      "spec_name": "Working Air Pressure",
      "spec_value": "180 - 220 psi"
    },
    {
      "spec_name": "Air Motor",
      "spec_value": "Non Powered"
    },
    {
      "spec_name": "Air Tank",
      "spec_value": "2 gal"
    },
    {
      "spec_name": "Clamping Shoes",
      "spec_value": "15 total clamp shoes , 12 shoes at the joint (6 on each section) 3 shoes on rear section"
    },
    {
      "spec_name": "Cylinder",
      "spec_value": "6\" (152 mm)"
    },
    {
      "spec_name": "Climbing Capacity",
      "spec_value": "N/A"
    }
  ],
  "features": [
    {
      "id": 312,
      "product_id": "ipc10",
      "feature": "Filters, lubricators, regulators and valves all rated to 250 psi",
      "sort_order": 0
    },
    {
      "id": 313,
      "product_id": "ipc10",
      "feature": "Fully hardened dowel pins",
      "sort_order": 1
    },
    {
      "id": 314,
      "product_id": "ipc10",
      "feature": "Nose cone made of 5⁄8\" diameter CF round bar",
      "sort_order": 2
    },
    {
      "id": 315,
      "product_id": "ipc10",
      "feature": "3 Section Clamp - No frame - Nose cone only",
      "sort_order": 3
    },
    {
      "id": 316,
      "product_id": "ipc10",
      "feature": "Three section, self-centering clamp has an extra clamping section to assure proper line-up in the",
      "sort_order": 4
    },
    {
      "id": 317,
      "product_id": "ipc10",
      "feature": "pipe to avoid lost time for high-low adjustments. *Standard in sizes 10\" through 14\"",
      "sort_order": 5
    },
    {
      "id": 318,
      "product_id": "ipc10",
      "feature": "Darby uses grade 8 bolts and the highest quality seals and u-cups in our assemblies",
      "sort_order": 6
    },
    {
      "id": 319,
      "product_id": "ipc10",
      "feature": "Air tubes are electro statically plated to reduce corrosion",
      "sort_order": 7
    },
    {
      "id": 320,
      "product_id": "ipc10",
      "feature": "Spring mounted air tank",
      "sort_order": 8
    },
    {
      "id": 321,
      "product_id": "ipc10",
      "feature": "Remote operated by reach rod",
      "sort_order": 9
    }
  ],
  "documents": [
    {
      "filename": "IPC10.pdf",
      "doc_type": "spec_sheet",
      "product_id": "ipc10"
    }
  ]
}
