Darby 16 Pipe Equipment

Raw JSON Data:

{
  "id": "ipc16",
  "model": "IPC 16",
  "full_name": "Darby 16 Pipe Equipment",
  "description": "Darby 16 pipe equipment",
  "category_id": "line_up_clamps",
  "specs_summary": "{\"Pipe Size Range\": \"16\\\" - 18\\\" (406 - 457 mm)\", \"Wall Thickness Range\": \".125\\\" - .500\\\" (3.18 - 12.7 mm) on 16\\\" (406 mm).125\\\" - .750\\\" (3.18 - 19.0 mm) on 18\\\" (457 mm)\", \"Standard Length\": \"100\\\" (2540 mm)\", \"Width\": \"14\\\" (356 mm)\", \"Height\": \"14\\\" (356 mm)\", \"Weight\": \"545 lbs (247 kg)\", \"Working Air Pressure\": \"180 - 220 psi\", \"Air Motor\": \".9 hp Cleco\", \"Air Tank\": \"10 gal w/ 3 gal reserve\", \"Clamping Shoes\": \"16 total clamp shoes, 8 on each section\", \"Cylinder\": \"8\\\" (203 mm)\", \"Climbing Capacity\": \"25\\u00b0 + slope\"}",
  "featured": 0,
  "sort_order": 0,
  "additional_note_1": null,
  "additional_note_2": null,

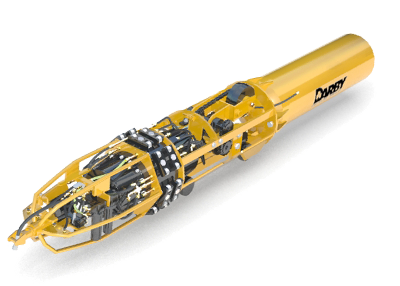

  "image_filename": "images/products/ipc16big.png",
  "image_is_main": 1,
  "images": [
    {
      "filename": "images/products/ipc16big.png",
      "is_main": 1,
      "description": null
    }
  ],
  "specifications": [
    {
      "spec_name": "Pipe Size Range",
      "spec_value": "16\" - 18\" (406 - 457 mm)"
    },
    {
      "spec_name": "Wall Thickness Range",
      "spec_value": ".125\" - .500\" (3.18 - 12.7 mm) on 16\" (406 mm).125\" - .750\" (3.18 - 19.0 mm) on 18\" (457 mm)"
    },
    {
      "spec_name": "Standard Length",
      "spec_value": "100\" (2540 mm)"
    },
    {
      "spec_name": "Width",
      "spec_value": "14\" (356 mm)"
    },
    {
      "spec_name": "Height",
      "spec_value": "14\" (356 mm)"
    },
    {
      "spec_name": "Weight",
      "spec_value": "545 lbs (247 kg)"
    },
    {
      "spec_name": "Working Air Pressure",
      "spec_value": "180 - 220 psi"
    },
    {
      "spec_name": "Air Motor",
      "spec_value": ".9 hp Cleco"
    },
    {
      "spec_name": "Air Tank",
      "spec_value": "10 gal w/ 3 gal reserve"
    },
    {
      "spec_name": "Clamping Shoes",
      "spec_value": "16 total clamp shoes, 8 on each section"
    },
    {
      "spec_name": "Cylinder",
      "spec_value": "8\" (203 mm)"
    },
    {
      "spec_name": "Climbing Capacity",
      "spec_value": "25° + slope"
    }
  ],
  "features": [
    {
      "id": 333,
      "product_id": "ipc16",
      "feature": "Filters, lubricators, regulators and valves all rated to 250 psi",
      "sort_order": 0
    },
    {
      "id": 334,
      "product_id": "ipc16",
      "feature": "Fully hardened dowel pins",
      "sort_order": 1
    },
    {
      "id": 335,
      "product_id": "ipc16",
      "feature": "Nose cone made of seamless 4130 steel for durability",
      "sort_order": 2
    },
    {
      "id": 336,
      "product_id": "ipc16",
      "feature": "Clamp frame is built using 11⁄2\" x 3⁄8\" angle iron to create a strong, durable frame",
      "sort_order": 3
    },
    {
      "id": 337,
      "product_id": "ipc16",
      "feature": "Darby uses grade 8 bolts and the highest quality seals and u-cups in our assemblies",
      "sort_order": 4
    },
    {
      "id": 338,
      "product_id": "ipc16",
      "feature": "Darby uses only the highest quality high pressure quick exhausts",
      "sort_order": 5
    },
    {
      "id": 339,
      "product_id": "ipc16",
      "feature": "Air tubes are electro statically plated to reduce corrosion",
      "sort_order": 6
    },
    {
      "id": 340,
      "product_id": "ipc16",
      "feature": "Two Stage Stainless Steel Air Tank: Rigid mounted air tank for 40' joints; Large trailer tank for 60'",
      "sort_order": 7
    },
    {
      "id": 341,
      "product_id": "ipc16",
      "feature": "and 80' joints available",
      "sort_order": 8
    },
    {
      "id": 342,
      "product_id": "ipc16",
      "feature": "Remote operated by reach rod",
      "sort_order": 9
    },
    {
      "id": 343,
      "product_id": "ipc16",
      "feature": "Most clamps can cover two pipe sizes through the use of conversion kits",
      "sort_order": 10
    },
    {
      "id": 344,
      "product_id": "ipc16",
      "feature": "All powered clamps have a 25° climbing capability",
      "sort_order": 11
    },
    {
      "id": 345,
      "product_id": "ipc16",
      "feature": "Powered line travel on models 16\" to 60 \" for easy operational mobility through the pipe",
      "sort_order": 12
    }
  ],
  "documents": [
    {
      "filename": "ipc16.pdf",
      "doc_type": "spec_sheet",
      "product_id": "ipc16"
    }
  ]
}
