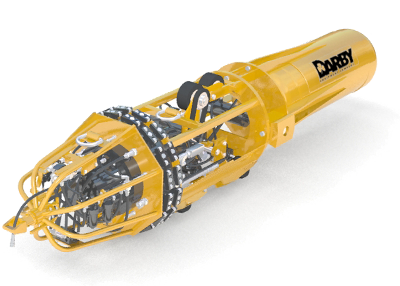

Darby IPC 28-30 Internal Pipe Clamp

Raw JSON Data:

{
  "id": "ipc2830",
  "model": "IPC 28-30",
  "full_name": "Darby IPC 28-30 Internal Pipe Clamp",
  "description": "Darby 2830 pipe equipment",
  "category_id": "line_up_clamps",
  "specs_summary": "{\"Pipe Size Range\": \"28\\\" - 30\\\" (711 - 762 mm)\", \"Wall Thickness Range\": \".125\\\" - .500\\\" (3.18 - 12.7 mm) on 28\\\" (711.2 mm).125\\\" - .750\\\" (3.18 - 19.05 mm) on 30\\\" (3762 mm)\", \"Standard Length\": \"125\\\" (3175 mm)\", \"Width\": \"25\\\" (635 mm)\", \"Height\": \"25\\\" (635 mm)\", \"Weight\": \"1260 lbs (572 kg)\", \"Working Air Pressure\": \"180 - 220 psi\", \"Air Motor\": \"1.9 hp Cleco\", \"Air Tank\": \"30 gal w/ 3 gal reserve\", \"Clamping Shoes\": \"32 total clamp shoes, 16 on each section\", \"Cylinder\": \"10\\\" (254 mm)\", \"Climbing Capacity\": \"25\\u00b0 + slope\"}",
  "featured": 0,
  "sort_order": 0,
  "additional_note_1": null,
  "additional_note_2": null,
  "image_filename": "images/products/ipc2830big.png",
  "image_is_main": 1,
  "images": [
    {
      "filename": "images/products/ipc2830big.png",
      "is_main": 1,
      "description": null
    }
  ],
  "specifications": [
    {
      "spec_name": "Pipe Size Range",
      "spec_value": "28\" - 30\" (711 - 762 mm)"
    },
    {
      "spec_name": "Wall Thickness Range",
      "spec_value": ".125\" - .500\" (3.18 - 12.7 mm) on 28\" (711.2 mm).125\" - .750\" (3.18 - 19.05 mm) on 30\" (3762 mm)"
    },
    {
      "spec_name": "Standard Length",
      "spec_value": "125\" (3175 mm)"
    },
    {
      "spec_name": "Width",
      "spec_value": "25\" (635 mm)"
    },
    {
      "spec_name": "Height",
      "spec_value": "25\" (635 mm)"
    },
    {
      "spec_name": "Weight",
      "spec_value": "1260 lbs (572 kg)"
    },
    {
      "spec_name": "Working Air Pressure",
      "spec_value": "180 - 220 psi"
    },
    {
      "spec_name": "Air Motor",
      "spec_value": "1.9 hp Cleco"
    },
    {
      "spec_name": "Air Tank",
      "spec_value": "30 gal w/ 3 gal reserve"
    },
    {
      "spec_name": "Clamping Shoes",
      "spec_value": "32 total clamp shoes, 16 on each section"
    },
    {
      "spec_name": "Cylinder",
      "spec_value": "10\" (254 mm)"
    },
    {
      "spec_name": "Climbing Capacity",
      "spec_value": "25° + slope"
    }
  ],
  "features": [
    {
      "id": 371,
      "product_id": "ipc2830",
      "feature": "Filters, lubricators, regulators and valves all rated to 250 psi",
      "sort_order": 0
    },
    {
      "id": 372,
      "product_id": "ipc2830",
      "feature": "Fully hardened dowel pins",
      "sort_order": 1
    },
    {
      "id": 373,
      "product_id": "ipc2830",
      "feature": "Nose cone made of seamless 4130 steel for durability",
      "sort_order": 2
    },
    {
      "id": 374,
      "product_id": "ipc2830",
      "feature": "Clamp frame is built using 2\" x 3⁄8\" angle iron and 11⁄4\" x 1⁄4\" WT square tubing to create a strong, durable frame",
      "sort_order": 3
    },
    {
      "id": 375,
      "product_id": "ipc2830",
      "feature": "Darby uses grade 8 bolts and the highest quality seals and u-cups in our assemblies",
      "sort_order": 4
    },
    {
      "id": 376,
      "product_id": "ipc2830",
      "feature": "Darby uses only the highest quality high pressure quick exhausts",
      "sort_order": 5
    },
    {
      "id": 377,
      "product_id": "ipc2830",
      "feature": "Air tubes are electro statically plated to reduce corrosion",
      "sort_order": 6
    },
    {
      "id": 378,
      "product_id": "ipc2830",
      "feature": "Ridgid Mounted Two Stage Stainless Steel Air Tank",
      "sort_order": 7
    },
    {
      "id": 379,
      "product_id": "ipc2830",
      "feature": "Remote operated by reach rod",
      "sort_order": 8
    },
    {
      "id": 380,
      "product_id": "ipc2830",
      "feature": "Most clamps can cover two pipe sizes through the use of conversion kits",
      "sort_order": 9
    },
    {
      "id": 381,
      "product_id": "ipc2830",
      "feature": "All powered clamps have a 25° climbing capability",
      "sort_order": 10
    },
    {
      "id": 382,
      "product_id": "ipc2830",
      "feature": "Powered line travel on models 16\" to 60\" for easy operational mobility through the pipe",
      "sort_order": 11
    }
  ],
  "documents": [
    {
      "filename": "IPC2830.pdf",
      "doc_type": "spec_sheet",
      "product_id": "ipc2830"
    }
  ]
}
