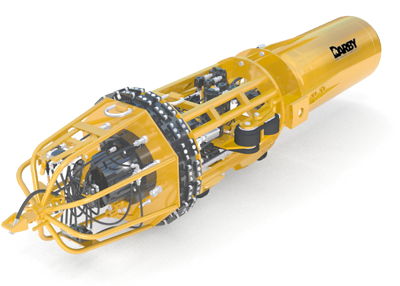

Darby IPC 36-38 Internal Pipe Clamp

Raw JSON Data:

{
  "id": "ipc3638",
  "model": "IPC 36-38",
  "full_name": "Darby IPC 36-38 Internal Pipe Clamp",
  "description": "Darby 3638 pipe equipment",
  "category_id": "line_up_clamps",
  "specs_summary": "{\"Pipe Size Range\": \"36\\\" - 38\\\" (914 - 965.2 mm)\", \"Wall Thickness Range\": \".375\\\" - .750\\\" (9.5 - 19 mm)\", \"Standard Length\": \"144\\\" (3658 mm)\", \"Width\": \"32\\\" (813 mm)\", \"Height\": \"32\\\" (813 mm)\", \"Weight\": \"3435 lbs (1558 kg)\", \"Working Air Pressure\": \"180 - 220 psi\", \"Air Motor\": \"2.7 hp Drive Motor\", \"Air Tank\": \"80 gal w/ 3 gal reserve\", \"Clamping Shoes\": \"40 total clamp shoes, 20 on each section\", \"Cylinder\": \"12\\\" (305 mm)\", \"Climbing Capacity\": \"25\\u00b0 + slope\"}",
  "featured": 0,
  "sort_order": 0,
  "additional_note_1": null,
  "additional_note_2": null,
  "image_filename": "images/products/ipc3638big.png",
  "image_is_main": 1,
  "images": [
    {
      "filename": "images/products/ipc3638big.png",
      "is_main": 1,
      "description": null
    }
  ],
  "specifications": [
    {
      "spec_name": "Pipe Size Range",
      "spec_value": "36\" - 38\" (914 - 965.2 mm)"
    },
    {
      "spec_name": "Wall Thickness Range",
      "spec_value": ".375\" - .750\" (9.5 - 19 mm)"
    },
    {
      "spec_name": "Standard Length",
      "spec_value": "144\" (3658 mm)"
    },
    {
      "spec_name": "Width",
      "spec_value": "32\" (813 mm)"
    },
    {
      "spec_name": "Height",
      "spec_value": "32\" (813 mm)"
    },
    {
      "spec_name": "Weight",
      "spec_value": "3435 lbs (1558 kg)"
    },
    {
      "spec_name": "Working Air Pressure",
      "spec_value": "180 - 220 psi"
    },
    {
      "spec_name": "Air Motor",
      "spec_value": "2.7 hp Drive Motor"
    },
    {
      "spec_name": "Air Tank",
      "spec_value": "80 gal w/ 3 gal reserve"
    },
    {
      "spec_name": "Clamping Shoes",
      "spec_value": "40 total clamp shoes, 20 on each section"
    },
    {
      "spec_name": "Cylinder",
      "spec_value": "12\" (305 mm)"
    },
    {
      "spec_name": "Climbing Capacity",
      "spec_value": "25° + slope"
    }
  ],
  "features": [
    {
      "id": 407,
      "product_id": "ipc3638",
      "feature": "Filters, lubricators, regulators and valves all rated to 250 psi",
      "sort_order": 0
    },
    {
      "id": 408,
      "product_id": "ipc3638",
      "feature": "Fully hardened dowel pins",
      "sort_order": 1
    },
    {
      "id": 409,
      "product_id": "ipc3638",
      "feature": "Nose cone made of seamless 4130 steel for durability",
      "sort_order": 2
    },
    {
      "id": 410,
      "product_id": "ipc3638",
      "feature": "Clamp frame is built using 2\" x 3⁄8\" angle iron and 2\" x 1⁄4\" WT square tubing to create a strong, durable frame",
      "sort_order": 3
    },
    {
      "id": 411,
      "product_id": "ipc3638",
      "feature": "Darby uses grade 8 bolts and the highest quality seals and u-cups in our assemblies",
      "sort_order": 4
    },
    {
      "id": 412,
      "product_id": "ipc3638",
      "feature": "Darby uses only the highest quality high pressure quick exhausts",
      "sort_order": 5
    },
    {
      "id": 413,
      "product_id": "ipc3638",
      "feature": "Air tubes are electro statically plated to reduce corrosion",
      "sort_order": 6
    },
    {
      "id": 414,
      "product_id": "ipc3638",
      "feature": "Extra 3.0 gallon air tank with check valve reserves air for multiple actuations of rear roller brackets",
      "sort_order": 7
    },
    {
      "id": 415,
      "product_id": "ipc3638",
      "feature": "Remote operated by reach rod",
      "sort_order": 8
    },
    {
      "id": 416,
      "product_id": "ipc3638",
      "feature": "Most clamps can cover two pipe sizes through the use of conversion kits",
      "sort_order": 9
    },
    {
      "id": 417,
      "product_id": "ipc3638",
      "feature": "All powered clamps have a 25° climbing capability",
      "sort_order": 10
    },
    {
      "id": 418,
      "product_id": "ipc3638",
      "feature": "Powered line travel on models 16\" to 60\" for easy operational mobility through the pipe",
      "sort_order": 11
    }
  ],
  "documents": [
    {
      "filename": "IPC3638.pdf",
      "doc_type": "spec_sheet",
      "product_id": "ipc3638"
    }
  ]
}
