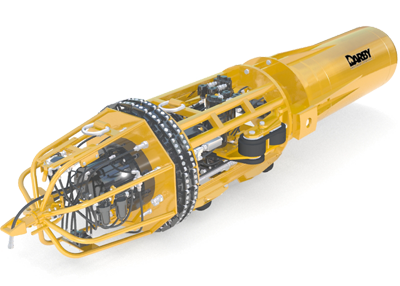

Darby IPC 46-48 Internal Pipe Clamp

Raw JSON Data:

{
  "id": "ipc4648",
  "model": "IPC 46-48",
  "full_name": "Darby IPC 46-48 Internal Pipe Clamp",
  "description": "Darby 4648 pipe equipment",
  "category_id": "line_up_clamps",
  "specs_summary": "{\"Pipe Size Range\": \"46\\\" - 48\\\" (1167 - 1219 mm)\", \"Wall Thickness Range\": \".375\\\" - .750\\\" (9.5 - 19 mm)\", \"Standard Length\": \"148\\\" (3759 mm)\", \"Width\": \"42\\\" (914 mm)\", \"Height\": \"42\\\" (914 mm)\", \"Weight\": \"3700 lbs (1678 kg)\", \"Working Air Pressure\": \"180 - 220 psi\", \"Air Motor\": \"(2) 2.7 hp Drive Motors - Side Drive\", \"Air Tank\": \"80 gal w/ 4.7 gal reserve\", \"Clamping Shoes\": \"48 total clamp shoes, 24 on each section\", \"Cylinder\": \"14\\\" (356 mm)\", \"Climbing Capacity\": \"25\\u00b0 + slope\"}",
  "featured": 0,
  "sort_order": 0,
  "additional_note_1": null,
  "additional_note_2": null,
  "image_filename": "images/products/ipc4648big.png",
  "image_is_main": 1,
  "images": [
    {
      "filename": "images/products/ipc4648big.png",
      "is_main": 1,
      "description": null
    }
  ],
  "specifications": [
    {
      "spec_name": "Pipe Size Range",
      "spec_value": "46\" - 48\" (1167 - 1219 mm)"
    },
    {
      "spec_name": "Wall Thickness Range",
      "spec_value": ".375\" - .750\" (9.5 - 19 mm)"
    },
    {
      "spec_name": "Standard Length",
      "spec_value": "148\" (3759 mm)"
    },
    {
      "spec_name": "Width",
      "spec_value": "42\" (914 mm)"
    },
    {
      "spec_name": "Height",
      "spec_value": "42\" (914 mm)"
    },
    {
      "spec_name": "Weight",
      "spec_value": "3700 lbs (1678 kg)"
    },
    {
      "spec_name": "Working Air Pressure",
      "spec_value": "180 - 220 psi"
    },
    {
      "spec_name": "Air Motor",
      "spec_value": "(2) 2.7 hp Drive Motors - Side Drive"
    },
    {
      "spec_name": "Air Tank",
      "spec_value": "80 gal w/ 4.7 gal reserve"
    },
    {
      "spec_name": "Clamping Shoes",
      "spec_value": "48 total clamp shoes, 24 on each section"
    },
    {
      "spec_name": "Cylinder",
      "spec_value": "14\" (356 mm)"
    },
    {
      "spec_name": "Climbing Capacity",
      "spec_value": "25° + slope"
    }
  ],
  "features": [
    {
      "id": 431,
      "product_id": "ipc4648",
      "feature": "Filters, lubricators, regulators and valves all rated to 250 psi",
      "sort_order": 0
    },
    {
      "id": 432,
      "product_id": "ipc4648",
      "feature": "Fully hardened dowel pins",
      "sort_order": 1
    },
    {
      "id": 433,
      "product_id": "ipc4648",
      "feature": "Nose cone made of seamless 4130 steel for durability",
      "sort_order": 2
    },
    {
      "id": 434,
      "product_id": "ipc4648",
      "feature": "Clamp frame is built using 2\" x 3⁄8\" angle iron and 2\" x 1⁄4\" WT square tubing to create a strong, durable frame",
      "sort_order": 3
    },
    {
      "id": 435,
      "product_id": "ipc4648",
      "feature": "Darby uses grade 8 bolts and the highest quality seals and u-cups in our assemblies",
      "sort_order": 4
    },
    {
      "id": 436,
      "product_id": "ipc4648",
      "feature": "Darby uses only the highest quality high pressure quick exhausts",
      "sort_order": 5
    },
    {
      "id": 437,
      "product_id": "ipc4648",
      "feature": "Air tubes are electro statically plated to reduce corrosion",
      "sort_order": 6
    },
    {
      "id": 438,
      "product_id": "ipc4648",
      "feature": "Extra 4.7 gallon air tank with check valve reserves air for multiple actuations of rear roller brackets",
      "sort_order": 7
    },
    {
      "id": 439,
      "product_id": "ipc4648",
      "feature": "Remote operated by reach rod",
      "sort_order": 8
    },
    {
      "id": 440,
      "product_id": "ipc4648",
      "feature": "Most clamps can cover two pipe sizes through the use of conversion kits",
      "sort_order": 9
    },
    {
      "id": 441,
      "product_id": "ipc4648",
      "feature": "All powered clamps have a 25° climbing capability",
      "sort_order": 10
    },
    {
      "id": 442,
      "product_id": "ipc4648",
      "feature": "Powered line travel on models 16\" to 60\" for easy operational mobility through the pipe",
      "sort_order": 11
    }
  ],
  "documents": [
    {
      "filename": "IPC4648.pdf",
      "doc_type": "spec_sheet",
      "product_id": "ipc4648"
    }
  ]
}
