Darby PFM 28 Pipe Facing Machine (24"-48")

Raw JSON Data:

{
  "id": "pfm2448",
  "model": "PFM 28",
  "full_name": "Darby PFM 28 Pipe Facing Machine (24\"-48\")",
  "description": "The Darby PFM 2448 Pipe Facing Machine provides precise pipe end preparation for large diameter pipes.",
  "category_id": "pipe_facing_machines",
  "specs_summary": "{\"Pipe Size Range\": \"24\\\" - 48\\\" (610 mm - 1,219 mm)\", \"Wall Thickness\": \"Up to 3\\\" (76 mm)\", \"Drive\": \"Hydraulic\", \"Weight\": \"8,000 lbs (3,629 kg)\"}",
  "featured": 0,
  "sort_order": 0,
  "additional_note_1": null,
  "additional_note_2": null,
  "image_filename": "images/products/pfm2448big.png",
  "image_is_main": 1,
  "images": [
    {

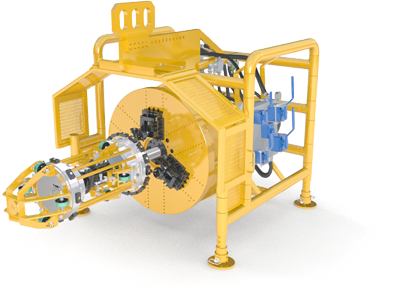

      "filename": "images/products/pfm2448big.png",
      "is_main": 1,
      "description": "Darby PFM 2448 Pipe Facing Machine"
    }
  ],
  "specifications": [
    {
      "spec_name": "Length",
      "spec_value": "138\" (3,505 mm)"
    },
    {
      "spec_name": "Width",
      "spec_value": "72\" (1,829 mm)"
    },
    {
      "spec_name": "Height",
      "spec_value": "84\" (2,134 mm)"
    },
    {
      "spec_name": "Weight",
      "spec_value": "12,000 lbs (5,443 kg)"
    },
    {
      "spec_name": "Operating Pressure",
      "spec_value": "Rotation: 2,000 psi (137.9 bar) @ 40 gpm max; Feed: 600 psi (41.4 bar) @ 2 gpm max; Clamp: 350 psi (24.1 bar)"
    },
    {
      "spec_name": "Cutting Speed",
      "spec_value": "584 Surface feet @ 87.5 rpm - Min on 24\" (609.6 mm) pipe; 1,192 Surface feet @ 87.5 rpm - Min on 48\" (1,219.2 mm) pipe"
    }
  ],
  "features": [
    {
      "id": 490,
      "product_id": "pfm2448",
      "feature": "Interchangeable clamping sections - each section can clamp up in at least two different pipe sizes",
      "sort_order": 1
    },
    {
      "id": 491,
      "product_id": "pfm2448",
      "feature": "Easily adapts to any bevel configuration including modified \"J\" bevel for automatic welding",
      "sort_order": 2
    },
    {
      "id": 492,
      "product_id": "pfm2448",
      "feature": "Brush adapters clean the inside and outside of the pipe during facing operation",
      "sort_order": 3
    },
    {
      "id": 493,
      "product_id": "pfm2448",
      "feature": "Machine will counterbore 24 - 48\" pipe to facilitate wall thickness changes (boring tool optional)",
      "sort_order": 4
    },
    {
      "id": 494,
      "product_id": "pfm2448",
      "feature": "Parker PrestoLok Fittings",
      "sort_order": 5
    },
    {
      "id": 495,
      "product_id": "pfm2448",
      "feature": "Variable hydraulic feed with fast feed option",
      "sort_order": 6
    },
    {
      "id": 496,
      "product_id": "pfm2448",
      "feature": "Counter clockwise rotation (facing the flywheel)",
      "sort_order": 7
    },
    {
      "id": 497,
      "product_id": "pfm2448",
      "feature": "Precise feed control for metering depth of cut",
      "sort_order": 8
    },
    {
      "id": 498,
      "product_id": "pfm2448",
      "feature": "Needle bearing dovetail tool design for smoother action",
      "sort_order": 9
    }
  ],
  "documents": [
    {
      "filename": "PFM2448.pdf",
      "doc_type": "spec_sheet",
      "product_id": "pfm2448"
    }
  ]
}
