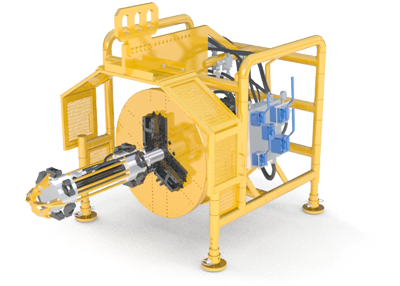

Darby PFM 8-14 Pipe Facing Machine

Raw JSON Data:

{
  "id": "pfm814",
  "model": "PFM 8-14",
  "full_name": "Darby PFM 8-14 Pipe Facing Machine",
  "description": "Darby 814 pipe equipment",
  "category_id": "pipe_facing_machines",
  "specs_summary": "{\"Length\": \"8\\\" (203.2 mm) and 10\\\" (254 mm) pipe - 931\\u20442\\\" (2,374.9 mm) 12\\\" (304.8 mm) and 14\\\" (355.6 mm) pipe - 941\\u20442\\\" (2,400.3mm)\", \"Width\": \"8\\\" (203.2 mm) and 10\\\" (254 mm) pipe - 611\\u20442\\\" (1,562.1 mm) 12\\\" (304.8 mm) and 14\\\" (355.6 mm) pipe - 611\\u20442\\\" (1,562.1 mm)\", \"Height\": \"Min Height 607\\u204416\\\" (1,535.1 mm) Max Height 757\\u204416\\\" (1,916.1 mm)\", \"Weight\": \"8\\\" - 10\\\" pipe 3,250 lbs (1,477.27 kg) 12\\\" - 14\\\" pipe 3,300 lbs (1,522.75 kg)\", \"Operating Pressure\": \"Rotation: 2000 psi (137.9 bar) @ 40 gpm max Feed: 600 psi (41.4 bar) @ 2 gpm max Clamp: 350 psi (24.1 bar)\", \"Cutting Speed\": \"226 Surface Feet @ 100 rpm - 8\\\" (203.2 mm) Pipe 281 Surface Feet @ 100 rpm - 10\\\" (254 mm) Pipe 334 Surface Feet @ 100 rpm - 12\\\" (304.8 mm) Pipe 367 Surface Feet @ 100 rpm - 14\\\" (355.6 mm) Pipe\"}",
  "featured": 0,
  "sort_order": 0,
  "additional_note_1": null,
  "additional_note_2": null,
  "image_filename": "images/products/pfm814big.png",
  "image_is_main": 1,
  "images": [
    {
      "filename": "images/products/pfm814big.png",
      "is_main": 1,
      "description": null
    }
  ],
  "specifications": [
    {
      "spec_name": "Length",
      "spec_value": "8\" (203.2 mm) and 10\" (254 mm) pipe - 931⁄2\" (2,374.9 mm) 12\" (304.8 mm) and 14\" (355.6 mm) pipe - 941⁄2\" (2,400.3mm)"
    },
    {
      "spec_name": "Width",
      "spec_value": "8\" (203.2 mm) and 10\" (254 mm) pipe - 611⁄2\" (1,562.1 mm) 12\" (304.8 mm) and 14\" (355.6 mm) pipe - 611⁄2\" (1,562.1 mm)"
    },
    {
      "spec_name": "Height",
      "spec_value": "Min Height 607⁄16\" (1,535.1 mm) Max Height 757⁄16\" (1,916.1 mm)"
    },
    {
      "spec_name": "Weight",
      "spec_value": "8\" - 10\" pipe 3,250 lbs (1,477.27 kg) 12\" - 14\" pipe 3,300 lbs (1,522.75 kg)"
    },
    {
      "spec_name": "Operating Pressure",
      "spec_value": "Rotation: 2000 psi (137.9 bar) @ 40 gpm max Feed: 600 psi (41.4 bar) @ 2 gpm max Clamp: 350 psi (24.1 bar)"
    },
    {
      "spec_name": "Cutting Speed",
      "spec_value": "226 Surface Feet @ 100 rpm - 8\" (203.2 mm) Pipe 281 Surface Feet @ 100 rpm - 10\" (254 mm) Pipe 334 Surface Feet @ 100 rpm - 12\" (304.8 mm) Pipe 367 Surface Feet @ 100 rpm - 14\" (355.6 mm) Pipe"
    }
  ],
  "features": [
    {
      "id": 443,
      "product_id": "pfm814",
      "feature": "Interchangeable clamping sections - each section can clamp up in at least two different pipe sizes",
      "sort_order": 0
    },
    {
      "id": 444,
      "product_id": "pfm814",
      "feature": "Easily adapts to any bevel configuration including modified \"J\" bevel for automatic welding",
      "sort_order": 1
    },
    {
      "id": 445,
      "product_id": "pfm814",
      "feature": "Brush adapters clean the inside and outside of the pipe during facing operation",
      "sort_order": 2
    },
    {
      "id": 446,
      "product_id": "pfm814",
      "feature": "Parker PrestoLok Fittings",
      "sort_order": 3
    },
    {
      "id": 447,
      "product_id": "pfm814",
      "feature": "Variable hydraulic feed with fast feed option",
      "sort_order": 4
    },
    {
      "id": 448,
      "product_id": "pfm814",
      "feature": "Counter clockwise rotation (facing the flywheel)",
      "sort_order": 5
    },
    {
      "id": 449,
      "product_id": "pfm814",
      "feature": "Precise feed control for metering depth of cut",
      "sort_order": 6
    },
    {
      "id": 450,
      "product_id": "pfm814",
      "feature": "Dovetail Gibb design tool block to reduce chatter",
      "sort_order": 7
    }
  ],
  "documents": [
    {
      "filename": "pfm814.pdf",
      "doc_type": "spec_sheet",
      "product_id": "pfm814"
    }
  ]
}
