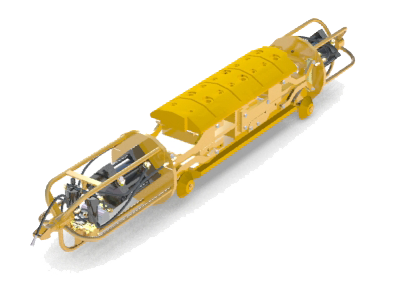

Darby PWM 10-12 Pipe Bending Mandrel

Raw JSON Data:

{
  "id": "pwm1012",
  "model": "PWM 10-12",
  "full_name": "Darby PWM 10-12 Pipe Bending Mandrel",
  "description": "Darby 1012 pipe equipment",
  "category_id": "pipe_bending_mandrels",
  "specs_summary": "{\"Length\": \"87\\\" (2210 mm)\", \"Width\": \"10\\\" (279 mm)\", \"Height\": \"12\\\" (305 mm)\", \"Weight\": \"475 lbs (216 kg)\", \"Air Motor\": \"Non Powered\", \"Cylinder\": \"5\\\" (127 mm)\", \"Working Air Pressure\": \"180 - 210 psi180 - 250 psi\", \"Pipe Size Range\": \"10\\\" - 12\\\" (254 - 305 mm)\", \"Wall Thickness Range\": \".188\\\" - .500\\\" (4.8 - 12.7 mm) 10\\\" .188\\\" - .625\\\" (4.8 - 15.9 mm) 12\\\"\"}",
  "featured": 0,
  "sort_order": 0,
  "additional_note_1": null,
  "additional_note_2": null,
  "image_filename": "images/products/pwm1012big.png",
  "image_is_main": 1,
  "images": [
    {
      "filename": "images/products/pwm1012big.png",
      "is_main": 1,
      "description": null
    }
  ],
  "specifications": [
    {
      "spec_name": "Length",
      "spec_value": "87\" (2210 mm)"
    },
    {
      "spec_name": "Width",
      "spec_value": "10\" (279 mm)"
    },
    {
      "spec_name": "Height",
      "spec_value": "12\" (305 mm)"
    },
    {
      "spec_name": "Weight",
      "spec_value": "475 lbs (216 kg)"
    },
    {
      "spec_name": "Air Motor",
      "spec_value": "Non Powered"
    },
    {
      "spec_name": "Cylinder",
      "spec_value": "5\" (127 mm)"
    },
    {
      "spec_name": "Working Air Pressure",
      "spec_value": "180 - 210 psi180 - 250 psi"
    },
    {
      "spec_name": "Pipe Size Range",
      "spec_value": "10\" - 12\" (254 - 305 mm)"
    },
    {
      "spec_name": "Wall Thickness Range",
      "spec_value": ".188\" - .500\" (4.8 - 12.7 mm) 10\" .188\" - .625\" (4.8 - 15.9 mm) 12\""
    }
  ],
  "features": [
    {
      "id": 158,
      "product_id": "pwm1012",
      "feature": "Adjustable for any wall thickness within specified mandrel range.Can cover 2 pipe sizes  through use of conversion kits.",
      "sort_order": 0
    },
    {
      "id": 159,
      "product_id": "pwm1012",
      "feature": "Wedges that are case hardened and bolt on to the wedge plates",
      "sort_order": 1
    },
    {
      "id": 160,
      "product_id": "pwm1012",
      "feature": "Long wedges reduce the need for shimming",
      "sort_order": 2
    },
    {
      "id": 161,
      "product_id": "pwm1012",
      "feature": "Grade 8 bolts and the highest quality Parker seals and u-cups",
      "sort_order": 3
    },
    {
      "id": 162,
      "product_id": "pwm1012",
      "feature": "Tapered wheels eliminate rolling",
      "sort_order": 4
    },
    {
      "id": 163,
      "product_id": "pwm1012",
      "feature": "Slide locks pull the belly of the mandrels up to eliminate drag in the pipe",
      "sort_order": 5
    },
    {
      "id": 164,
      "product_id": "pwm1012",
      "feature": "Powerful oversized cylinders provide maximum force",
      "sort_order": 6
    },
    {
      "id": 165,
      "product_id": "pwm1012",
      "feature": "Equipped with filters, lubricators, regulators & valves that are all rated to 250 psi",
      "sort_order": 7
    },
    {
      "id": 166,
      "product_id": "pwm1012",
      "feature": "Remote operated by reach rod",
      "sort_order": 8
    }
  ],
  "documents": [
    {
      "filename": "PWM1012.pdf",
      "doc_type": "spec_sheet",
      "product_id": "pwm1012"
    }
  ]
}
