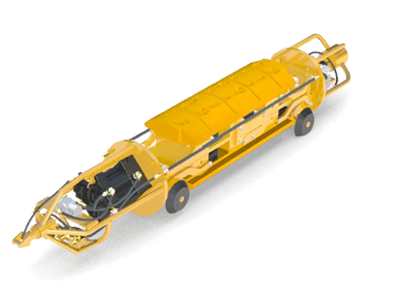

Darby PWM 18-20 Pipe Bending Mandrel

Raw JSON Data:

{
  "id": "pwm1820",
  "model": "PWM 18-20",
  "full_name": "Darby PWM 18-20 Pipe Bending Mandrel",
  "description": "Darby 1820 pipe equipment",
  "category_id": "pipe_bending_mandrels",
  "specs_summary": "{\"Length\": \"99\\\" (2515 mm)\", \"Width\": \"14\\\" (356 mm)\", \"Height\": \"20\\\" (432 mm)\", \"Weight\": \"850 lbs (386 kg)\", \"Air Motor\": \".9 hp - Cooper\", \"Cylinder\": \"8\\\" (203 mm)\", \"Working Air Pressure\": \"180 - 210 psi\", \"Pipe Size Range\": \"18\\\" - 20\\\" (406 mm)\", \"Wall Thickness Range\": \".188\\\" - .500\\\" (4.8 - 12.7 mm)\"}",
  "featured": 0,
  "sort_order": 0,
  "additional_note_1": null,
  "additional_note_2": null,
  "image_filename": "images/products/pwm1820big.png",
  "image_is_main": 1,
  "images": [
    {
      "filename": "images/products/pwm1820big.png",
      "is_main": 1,
      "description": null
    }
  ],
  "specifications": [
    {
      "spec_name": "Length",
      "spec_value": "99\" (2515 mm)"
    },
    {
      "spec_name": "Width",
      "spec_value": "14\" (356 mm)"
    },
    {
      "spec_name": "Height",
      "spec_value": "20\" (432 mm)"
    },
    {
      "spec_name": "Weight",
      "spec_value": "850 lbs (386 kg)"
    },
    {
      "spec_name": "Air Motor",
      "spec_value": ".9 hp - Cooper"
    },
    {
      "spec_name": "Cylinder",
      "spec_value": "8\" (203 mm)"
    },
    {
      "spec_name": "Working Air Pressure",
      "spec_value": "180 - 210 psi"
    },
    {
      "spec_name": "Pipe Size Range",
      "spec_value": "18\" - 20\" (406 mm)"
    },
    {
      "spec_name": "Wall Thickness Range",
      "spec_value": ".188\" - .500\" (4.8 - 12.7 mm)"
    }
  ],
  "features": [
    {
      "id": 186,
      "product_id": "pwm1820",
      "feature": "Adjustable for any wall thickness within specified mandrel range.Can cover 2 pipe sizes  through use of conversion kits.",
      "sort_order": 0
    },
    {
      "id": 187,
      "product_id": "pwm1820",
      "feature": "Wedges that are case hardened and bolt on to the wedge plates",
      "sort_order": 1
    },
    {
      "id": 188,
      "product_id": "pwm1820",
      "feature": "Long wedges reduce the need for shimming",
      "sort_order": 2
    },
    {
      "id": 189,
      "product_id": "pwm1820",
      "feature": "Grade 8 bolts and the highest quality Parker seals and u-cups",
      "sort_order": 3
    },
    {
      "id": 190,
      "product_id": "pwm1820",
      "feature": "Tapered wheels eliminate rolling",
      "sort_order": 4
    },
    {
      "id": 191,
      "product_id": "pwm1820",
      "feature": "Slide locks pull the belly of the mandrels up to eliminate drag in the pipe",
      "sort_order": 5
    },
    {
      "id": 192,
      "product_id": "pwm1820",
      "feature": "High horsepower air motors for quick and responsive travel",
      "sort_order": 6
    },
    {
      "id": 193,
      "product_id": "pwm1820",
      "feature": "Powerful oversized cylinders provide maximum force",
      "sort_order": 7
    },
    {
      "id": 194,
      "product_id": "pwm1820",
      "feature": "Equipped with filters, lubricators, regulators & valves that are all rated to 250 psi",
      "sort_order": 8
    },
    {
      "id": 195,
      "product_id": "pwm1820",
      "feature": "Remote operated by reach rod",
      "sort_order": 9
    }
  ],
  "documents": [
    {
      "filename": "PWM1820Short.pdf",
      "doc_type": "spec_sheet",
      "product_id": "pwm1820"
    }
  ]
}
