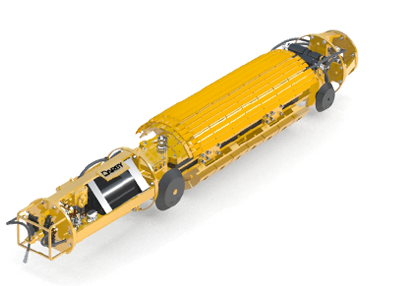

Darby PWM 24-32 Pipe Bending Mandrel

Raw JSON Data:

{
  "id": "pwm2432",
  "model": "PWM 24-32",
  "full_name": "Darby PWM 24-32 Pipe Bending Mandrel",
  "description": "Darby 2432 pipe equipment",
  "category_id": "pipe_bending_mandrels",
  "specs_summary": "{\"Length\": \"133\\\" (3378 mm)\", \"Width\": \"25\\\" (635 mm)\", \"Height\": \"32\\\" (813 mm)\", \"Weight\": \"3,650 lbs (1656 kg)\", \"Air Motor\": \"Two 1.3 hp - Ingersoll Rand\", \"Cylinder\": \"14\\\" (356 mm)\", \"Working Air Pressure\": \"180 - 210 psi\", \"Pipe Size Range\": \"24\\\" - 32\\\" (610 - 813 mm)\", \"Wall Thickness Range\": \".188\\\" - .750\\\" (4.8 - 19 mm)\"}",
  "featured": 0,
  "sort_order": 0,
  "additional_note_1": null,
  "additional_note_2": null,
  "image_filename": "images/products/pwm2432big.png",
  "image_is_main": 1,
  "images": [
    {
      "filename": "images/products/pwm2432big.png",
      "is_main": 1,
      "description": null
    }
  ],
  "specifications": [
    {
      "spec_name": "Length",
      "spec_value": "133\" (3378 mm)"
    },
    {
      "spec_name": "Width",
      "spec_value": "25\" (635 mm)"
    },
    {
      "spec_name": "Height",
      "spec_value": "32\" (813 mm)"
    },
    {
      "spec_name": "Weight",
      "spec_value": "3,650 lbs (1656 kg)"
    },
    {
      "spec_name": "Air Motor",
      "spec_value": "Two 1.3 hp - Ingersoll Rand"
    },
    {
      "spec_name": "Cylinder",
      "spec_value": "14\" (356 mm)"
    },
    {
      "spec_name": "Working Air Pressure",
      "spec_value": "180 - 210 psi"
    },
    {
      "spec_name": "Pipe Size Range",
      "spec_value": "24\" - 32\" (610 - 813 mm)"
    },
    {
      "spec_name": "Wall Thickness Range",
      "spec_value": ".188\" - .750\" (4.8 - 19 mm)"
    }
  ],
  "features": [
    {
      "id": 226,
      "product_id": "pwm2432",
      "feature": "Mandrel will work in a range of wall thicknesses without reshimming;each conversion kit will cover 3 pipe diameters (24\" - 26\", 28\" - 30\" or 30\" - 32\")",
      "sort_order": 0
    },
    {
      "id": 227,
      "product_id": "pwm2432",
      "feature": "Wedges that are case hardened and bolt on to the wedge plates",
      "sort_order": 1
    },
    {
      "id": 228,
      "product_id": "pwm2432",
      "feature": "Long wedges reduce the need for shimming",
      "sort_order": 2
    },
    {
      "id": 229,
      "product_id": "pwm2432",
      "feature": "Grade 8 bolts and the highest quality Parker seals and u-cups",
      "sort_order": 3
    },
    {
      "id": 230,
      "product_id": "pwm2432",
      "feature": "Tapered wheels eliminate rolling",
      "sort_order": 4
    },
    {
      "id": 231,
      "product_id": "pwm2432",
      "feature": "Slide locks pull the belly of the mandrels up to eliminate drag in the pipe",
      "sort_order": 5
    },
    {
      "id": 232,
      "product_id": "pwm2432",
      "feature": "High horsepower air motors for quick and responsive travel",
      "sort_order": 6
    },
    {
      "id": 233,
      "product_id": "pwm2432",
      "feature": "Powerful oversized cylinders provide maximum force",
      "sort_order": 7
    },
    {
      "id": 234,
      "product_id": "pwm2432",
      "feature": "Equipped with filters, lubricators, regulators & valves that are all rated to 250 psi",
      "sort_order": 8
    },
    {
      "id": 235,
      "product_id": "pwm2432",
      "feature": "Remote operated by reach rod",
      "sort_order": 9
    }
  ],
  "documents": [
    {
      "filename": "PWM2432.pdf",
      "doc_type": "spec_sheet",
      "product_id": "pwm2432"
    }
  ]
}
