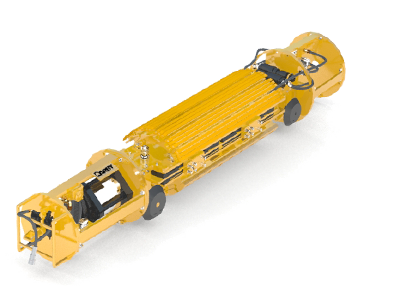

Darby PWM 34-42 Pipe Bending Mandrel

Raw JSON Data:

{
  "id": "pwm3442",
  "model": "PWM 34-42",
  "full_name": "Darby PWM 34-42 Pipe Bending Mandrel",
  "description": "Darby 3442 pipe equipment",
  "category_id": "pipe_bending_mandrels",
  "specs_summary": "{\"Length\": \"160\\\" (4064 mm)\", \"Width\": \"36\\\" (914 mm)\", \"Height\": \"42\\\" (1067 mm)\", \"Weight\": \"7,060 lbs (3202 kg)\", \"Air Motor\": \"Two 3.0 hp - Ingersoll Rand\", \"Cylinder\": \"16\\\" (406 mm)\", \"Working Air Pressure\": \"180 - 210 psi\", \"Pipe Size Range\": \"34\\\" - 42\\\" (864 - 1067 mm)\", \"Wall Thickness Range\": \".188\\\" - .750\\\" (4.8 - 19 mm)\"}",
  "featured": 0,
  "sort_order": 0,
  "additional_note_1": null,
  "additional_note_2": null,
  "image_filename": "images/products/pwm3442big.png",
  "image_is_main": 1,
  "images": [
    {
      "filename": "images/products/pwm3442big.png",
      "is_main": 1,
      "description": null
    }
  ],
  "specifications": [
    {
      "spec_name": "Length",
      "spec_value": "160\" (4064 mm)"
    },
    {
      "spec_name": "Width",
      "spec_value": "36\" (914 mm)"
    },
    {
      "spec_name": "Height",
      "spec_value": "42\" (1067 mm)"
    },
    {
      "spec_name": "Weight",
      "spec_value": "7,060 lbs (3202 kg)"
    },
    {
      "spec_name": "Air Motor",
      "spec_value": "Two 3.0 hp - Ingersoll Rand"
    },
    {
      "spec_name": "Cylinder",
      "spec_value": "16\" (406 mm)"
    },
    {
      "spec_name": "Working Air Pressure",
      "spec_value": "180 - 210 psi"
    },
    {
      "spec_name": "Pipe Size Range",
      "spec_value": "34\" - 42\" (864 - 1067 mm)"
    },
    {
      "spec_name": "Wall Thickness Range",
      "spec_value": ".188\" - .750\" (4.8 - 19 mm)"
    }
  ],
  "features": [
    {
      "id": 236,
      "product_id": "pwm3442",
      "feature": "Mandrel will work in a range of wall thicknesses without reshimming;each conversion kit will cover 3 pipe diameters (34\" - 36\", 38\" - 40\" or 40\" - 42\")",
      "sort_order": 0
    },
    {
      "id": 237,
      "product_id": "pwm3442",
      "feature": "Wedges that are case hardened and bolt on to the wedge plates",
      "sort_order": 1
    },
    {
      "id": 238,
      "product_id": "pwm3442",
      "feature": "Long wedges reduce the need for shimming",
      "sort_order": 2
    },
    {
      "id": 239,
      "product_id": "pwm3442",
      "feature": "Grade 8 bolts and the highest quality Parker seals and u-cups",
      "sort_order": 3
    },
    {
      "id": 240,
      "product_id": "pwm3442",
      "feature": "Tapered wheels eliminate rolling",
      "sort_order": 4
    },
    {
      "id": 241,
      "product_id": "pwm3442",
      "feature": "Slide locks pull the belly of the mandrels up to eliminate drag in the pipe",
      "sort_order": 5
    },
    {
      "id": 242,
      "product_id": "pwm3442",
      "feature": "High horsepower air motors for quick and responsive travel",
      "sort_order": 6
    },
    {
      "id": 243,
      "product_id": "pwm3442",
      "feature": "Powerful oversized cylinders provide maximum force",
      "sort_order": 7
    },
    {
      "id": 244,
      "product_id": "pwm3442",
      "feature": "Equipped with filters, lubricators, regulators & valves that are all rated to 250 psi",
      "sort_order": 8
    },
    {
      "id": 245,
      "product_id": "pwm3442",
      "feature": "Remote operated by reach rod",
      "sort_order": 9
    }
  ],
  "documents": [
    {
      "filename": "PWM3442.pdf",
      "doc_type": "spec_sheet",
      "product_id": "pwm3442"
    }
  ]
}
