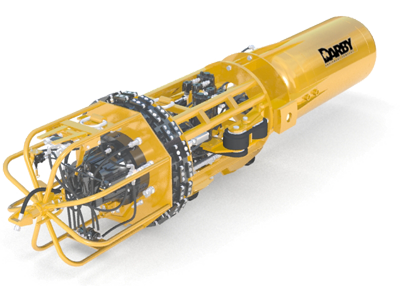

34-36" Internal Pneumatic Clamp (IPC34-36)


For a printable version, click here

FEATURES AND TECHNICAL SPECIFICATIONS

Features/Advantages:
pipe roller cradles Filters, lubricators, regulators and valves all rated to 250 psi
pipe roller cradles Fully hardened dowel pins
pipe roller cradles Nose cone made of seamless 4130 steel for durability
pipe roller cradles Clamp frame is built using 2" x 38" angle iron and 2" x 14" WT square tubing to create a strong, durable frame
pipe roller cradles Darby uses grade 8 bolts and the highest quality seals and u-cups in our assemblies
pipe roller cradles Darby uses only the highest quality high pressure quick exhausts
pipe roller cradles Air tubes are electro statically plated to reduce corrosion
pipe roller cradles Extra 1.6 gallon air tank with check valve reserves air for multiple actuations of rear roller brackets
pipe roller cradles Remote operated by reach rod
pipe roller cradles Most clamps can cover two pipe sizes through the use of conversion kits
pipe roller cradles All powered clamps have a 25° climbing capability
pipe roller cradles Powered line travel on models 16" to 60" for easy operational mobility through the pipe

Technical Specifications:
Pipe Size Range 34" - 36" (864 - 914 mm)
Wall Thickness Range .375" - .750" (9.5 - 19 mm)
Standard Length 145" (3686 mm)
Width 31" (787 mm)
Height 31" (787 mm)
Weight 2715 lbs (1232 kg)
Working Air Pressure 180 - 220 psi
Air Motor (2) 2.7 hp Drive Motors
Air Tank 80 gal w/ 1.6 gal reserve
Clamping Shoes 36 total clamp shoes, 18 on each section
Cylinder 12" (305 mm)
Climbing Capacity 25° + slope
