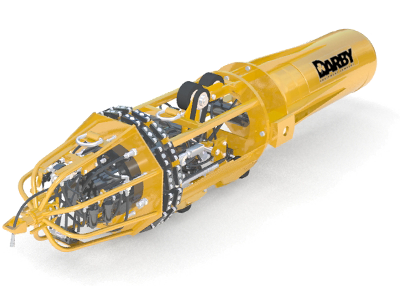

For a printable version, click hereFEATURES AND TECHNICAL SPECIFICATIONS
Features/Advantages:
Filters, lubricators, regulators and valves all rated to 250psi Fully hardened dowel pins Nose cone made of seamless 4130 steel for durability Clamp frame is built using 2"x 3/8" angle iron and 1 1/4" X 1/4" WT square tubing to create a strong, durable frame Darby uses grade 8 bolts and the highest quality seals and u-cups in our assemblies Darby uses only the highest quality high pressure quick exhausts Air tubes are electro statically plated to reduce corrosion Ridgid Mounted Two Stage Stainless Steel Air Tank Remote operated by reach rod Most clamps can cover two pipe sizes through the use of conversion kits All powered clamps have a 25 degree climbing capability Powered line travel on models 16" to 60" for easy operational mobility through the pipe
Technical Specifications:
Pipe Size Range 28"-30" (711 - 762mm) Wall Thickness Range .125"-.500" (3.18-12.7mm) on 28"(711.2mm)
.125"-.750" (3.18-19.05mm) on 30"(3762mm)Standard Length 125" (3175mm) Width 25" (635mm) Height 25" (635mm) Weight 1260 lbs (572 kg) Working Air Pressure 180-220 psi Air Motor 1.9 hp Cleco Air Tank 30 gal w/ 3 gal reserve Clamping Shoes 32 total clamp shoes, 16 on each section Cylinder 10" (254mm) Climbing Capacity 25 degree + slope
