![](specpics/ipc6big.png)

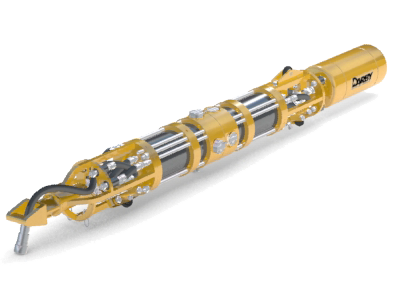

For a printable version, click hereFEATURES AND TECHNICAL SPECIFICATIONS
Features/Advantages:
Valves all rated to 250psi Fully hardened dowel pins Nose cone made of lasered A36 3/8" plate Integral Tank and Frame Darby uses grade 8 bolts and the highest quality seals and u-cups in our assemblies Parker Prestolok fittings Rubber isolation mounted air tank Remote operated by reach rod
Technical Specifications:
Pipe Size Range 6" (152mm) Wall Thickness Range 53" (1346mm) Standard Length 53" (1346mm) Width 6" (152mm) Height 6" (152mm) Weight 60 lbs (27 kg) Working Air Pressure 180-220 psi Air Motor Non Powered Air Tank .6 gal Clamping Shoes 8 total clamp shoes, 4 on each section Cylinder 3.5" (89mm) Climbing Capacity N/A
