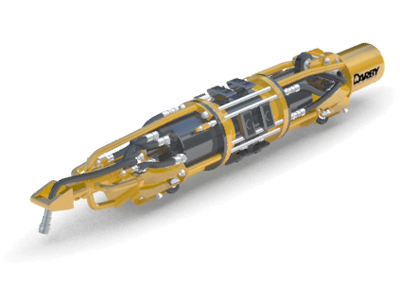

For a printable version, click hereFEATURES AND TECHNICAL SPECIFICATIONS
Features/Advantages:
Valves all rated to 250psi Fully hardened dowel pins Nose cone made of 5/8" diameter CF round bar Integral Tank and Frame Darby uses grade 8 bolts and the highest quality seals and u-cups in our assemblies Air tubes are 1/8" Stainless Steel Pipe to reduce corrosion Rigid mounted air tank Remote operated by reach rod
Technical Specifications:
Pipe Size Range 8" (203mm) Wall Thickness Range .125"-.375" (3.18-9.5mm) Standard Length 48" (1219mm) Width 8" (203mm) Height 8" (203mm) Weight 125 lbs (57 kg) Working Air Pressure 180-220 psi Air Motor Non Powered Air Tank .5 gal Clamping Shoes 10 total clamp shoes, 5 on each section Cylinder 5" (127mm) Climbing Capacity N/A
