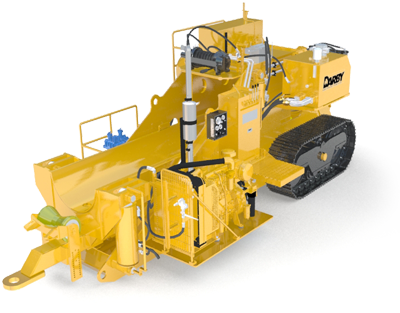

16-30" Pipe Bending Machine (HPB16-30)


For a printable version, click here

FEATURES AND TECHNICAL SPECIFICATIONS

Features/Advantages:
pipe roller cradles 35 gal (133 Litre) fuel tank
pipe roller cradles 5 section hydraulic control valve for optionalhydraulic mandrel
operation as well as bending operations
pipe roller cradles 100 gal (379 Litre) hydraulic tank, 80 gal (303 Litre) fill capacity
pipe roller cradles Oil cooler in compressor drive circuit
pipe roller cradles Machine side plates reinforced with stiffeners in key locations; Multi-pass welding for optimal frame life and strength; Side plates made from 3/4" T1 steel; Die nest plates made from 1" T-1 steel; all welds are pre heated and heat controlled and all welds are made in position
pipe roller cradles Dual hydraulic filtration, pressure and return
pipe roller cradles Murphy Control panel w/ electric start, throttle control, oil pressure, tachometer and hour meter
pipe roller cradles Murphy Control panel w/ electric start, throttle control, oil pressure, tachometer and hour meter
pipe roller cradles Parker Seal-Lok™ hydraulic systems prevents leaks and has a working pressure rating of 3000 psi
pipe roller cradles Repairable hydraulic cylinders with Parker Seals come apart without cutting to enable easy seal repair
pipe roller cradles 15 ton CAT style triple grouser tracks

Performance:
pipe roller cradles Maximum bending force at front of stiffback 381,700 lbs
pipe roller cradles Air compressor with 240 psi maximum continuous pressure
pipe roller cradles Hydraulic vane pump for main bending circuit, 42 gpm @ 2400 rpm, 3000 psi

Technical Specifications:
Length 22'6" (4114.8 mm)
Width 8'6" (2032 mm)
Height 8'6" (2590.8 mm)
Weight 35,000 lbs (15,876 kg) (w/o bending set)
Engine CAT C4.4 Turbo 109 hp @ 2200 rpm
Winch Ramsey 15,000 lb Winch
Air Compressor Hydraulic Driven Quincy 370 Compressor w/ 120 Gal Reservoir
Cylinders (2) 9" (229 mm) Outboard Cylinders w/ 19" Stroke
(2) 7" (178 mm) Inboard Cylinders w/ 6" Stroke
Hydraulic Pump Denison Main Pump, Parker Piston Pump for Compressor Drive
Oil Cooler American Industrial
