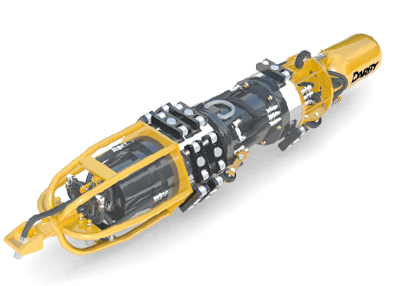

12-14" Internal Pneumatic Clamp (IPC12-14)


For a printable version, click here

FEATURES AND TECHNICAL SPECIFICATIONS

Features/Advantages:
pipe roller cradles Filters, lubricators, regulators and valves all rated to 250 psi
pipe roller cradles Fully hardened dowel pins
pipe roller cradles Nose cone made of seamless 4130 steel for durability
pipe roller cradles 3 Section Clamp - No frame - Nose cone only
pipe roller cradles Three section, self-centering clamp has an extra clamping section to assure proper line-up in the pipe to avoid lost time for high-low adjustments. *Standard in sizes 10" through 14"
pipe roller cradles Darby uses grade 8 bolts and the highest quality seals and u-cups in our assemblies
pipe roller cradles Air tubes are electro statically plated to reduce corrosion
pipe roller cradles Spring mounted air tank
pipe roller cradles Remote operated by reach rod
pipe roller cradles Most clamps can cover two pipe sizes through the use of conversion kits

Technical Specifications:
Pipe Size Range 12" - 14" (305-356 mm)
Wall Thickness Range .125" - .500" (3.18 - 12.7 mm) on 12"(305 mm)
.125" - .750" (3.18 - 19.05 mm) on 14"(356 mm)
Standard Length 65" (1651 mm)
Width 11" (279 mm)
Height 11" (279 mm)
Weight 270 lbs (123 kg)
Working Air Pressure 180 - 220 psi
Air Motor Non Powered
Air Tank 2 gal
Clamping Shoes 15 total clamp shoes , 12 shoes at the joint (6 on each section) 3 shoes on rear section
Cylinder 6" (152 mm)
Climbing Capacity N/A
