FEATURES AND TECHNICAL SPECIFICATIONS

Features/Advantages:

	Filters, lubricators, regulators and valves all rated to 250 psi
	Fully hardened dowel pins
	Nose cone made of 5⁄8" diameter CF round bar

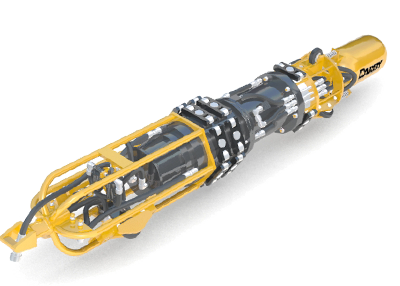

	3 Section Clamp - No frame - Nose cone only
	Three section, self-centering clamp has an extra clamping section to assure proper line-up in the pipe to avoid lost time for high-low adjustments. *Standard in sizes 10" through 14"
	Darby uses grade 8 bolts and the highest quality seals and u-cups in our assemblies
	Air tubes are electro statically plated to reduce corrosion
	Spring mounted air tank
	Remote operated by reach rod

Technical Specifications:

Pipe Size Range	10" (254 mm)
Wall Thickness Range	.125" - .5" (3.18 - 12.7 mm)
Standard Length	68" (1727.2 mm)
Width	10" (254 mm)
Height	10" (254 mm)
Weight	235 lbs (107 kg)
Working Air Pressure	180 - 220 psi
Air Motor	Non Powered
Air Tank	2 gal
Clamping Shoes	15 total clamp shoes , 12 shoes at the joint (6 on each section) 3 shoes on rear section
Cylinder	6" (152 mm)
Climbing Capacity	N/A
