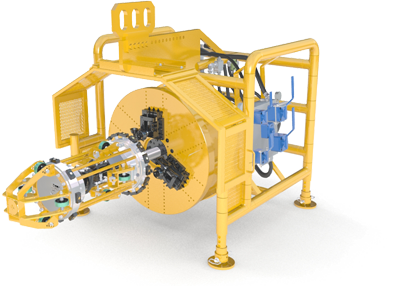

24"-48" Pipe Facing Machine


For a printable version, click here

FEATURES AND TECHNICAL SPECIFICATIONS

Features/Advantages:
pipe roller cradles Interchangeable clamping sections - each section can clamp up in at least two different pipe sizes
pipe roller cradles Easily adapts to any bevel configuration including modified "J" bevel for automatic welding
pipe roller cradles Brush adapters clean the inside and outside of the pipe during facing operation
pipe roller cradles Machine will counterbore 24 - 48" pipe to facilitate wall thickness changes (boring tool optional)
pipe roller cradles Parker PrestoLok Fittings
pipe roller cradles Variable hydraulic feed with fast feed option
pipe roller cradles Counter clockwise rotation (facing the flywheel)
pipe roller cradles Precise feed control for metering depth of cut
pipe roller cradles Needle bearing dovetail tool design for smoother action

Technical Specifications:
Length 142" (3,607 mm)
Width 80" (2,032 mm)
Height 91" (2,311 mm)
Weight 9,000 lbs (4,082 kg)
Operating Pressure Rotation: 2,000 psi (137.9 bar) @ 40 gpm max
Feed: 600 psi (41.4 bar) @ 2 gpm max
Clamp: 400 psi (24.1 bar)
Cutting Speed 264 Surface feet @ 43 rpm - Min. on 24" (609.6 mm) pipe
528 Surface feet @ 43 rpm - Min. on 48" (914.4 mm) pipe
