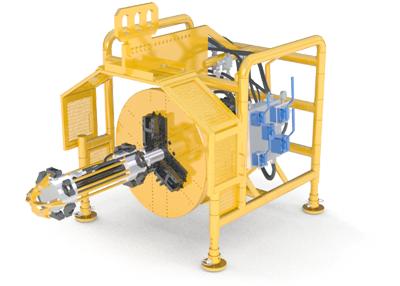

8"-14" Pipe Facing Machine


For a printable version, click here

FEATURES AND TECHNICAL SPECIFICATIONS

Features/Advantages:
pipe roller cradles Interchangeable clamping sections - each section can clamp up in at least two different pipe sizes
pipe roller cradles Easily adapts to any bevel configuration including modified "J" bevel for automatic welding
pipe roller cradles Brush adapters clean the inside and outside of the pipe during facing operation
pipe roller cradles Parker PrestoLok Fittings
pipe roller cradles Variable hydraulic feed with fast feed option
pipe roller cradles Counter clockwise rotation (facing the flywheel)
pipe roller cradles Precise feed control for metering depth of cut
pipe roller cradles Dovetail Gibb design tool block to reduce chatter

Technical Specifications:
Length 8" (203.2 mm) and 10" (254 mm) pipe - 9312" (2,374.9 mm)
12" (304.8 mm) and 14" (355.6 mm) pipe - 9412" (2,400.3mm)
Width 8" (203.2 mm) and 10" (254 mm) pipe - 6112" (1,562.1 mm)
12" (304.8 mm) and 14" (355.6 mm) pipe - 6112" (1,562.1 mm)
Height Min Height 60716" (1,535.1 mm)
Max Height 75716" (1,916.1 mm)
Weight 8" - 10" pipe 3,250 lbs (1,477.27 kg)
12" - 14" pipe 3,300 lbs (1,522.75 kg)
Operating Pressure Rotation: 2000 psi (137.9 bar) @ 40 gpm max
Feed: 600 psi (41.4 bar) @ 2 gpm max
Clamp: 350 psi (24.1 bar)
Cutting Speed 226 Surface Feet @ 100 rpm - 8" (203.2 mm) Pipe
281 Surface Feet @ 100 rpm - 10" (254 mm) Pipe
334 Surface Feet @ 100 rpm - 12" (304.8 mm) Pipe
367 Surface Feet @ 100 rpm - 14" (355.6 mm) Pipe
