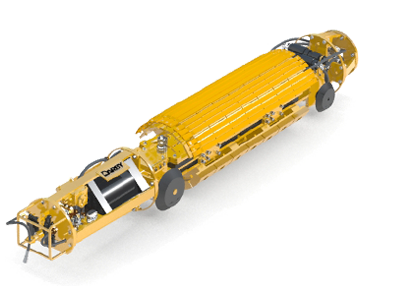

24"-32" Pneumatic Wedge Mandrel - Powered


For a printable version, click here

FEATURES AND TECHNICAL SPECIFICATIONS

Features/Advantages:
pipe roller cradles Mandrel will work in a range of wall thicknesses without reshimming;
each conversion kit will cover 3 pipe diameters (24" - 26", 28" - 30" or 30" - 32")
pipe roller cradles Wedges that are case hardened and bolt on to the wedge plates
pipe roller cradles Long wedges reduce the need for shimming
pipe roller cradles Grade 8 bolts and the highest quality Parker seals and u-cups
pipe roller cradles Tapered wheels eliminate rolling
pipe roller cradles Slide locks pull the belly of the mandrels up to eliminate drag in the pipe
pipe roller cradles High horsepower air motors for quick and responsive travel
pipe roller cradles Powerful oversized cylinders provide maximum force
pipe roller cradles Equipped with filters, lubricators, regulators & valves that are all rated to 250 psi
pipe roller cradles Remote operated by reach rod
Performance:
pipe roller cradles High strength alloys used in construction
pipe roller cradles Specifically designed for use in a larger bending machine (16" - 30" and up)

Technical Specifications:
Length 133" (3378 mm)
Width 25" (635 mm)
Height 32" (813 mm)
Weight 3,650 lbs (1656 kg)
Air Motor Two 1.3 hp - Ingersoll Rand
Cylinder 14" (356 mm)
Working Air Pressure 180 - 210 psi
Pipe Size Range 24" - 32" (610 - 813 mm)
Wall Thickness Range .188" - .750" (4.8 - 19 mm)
